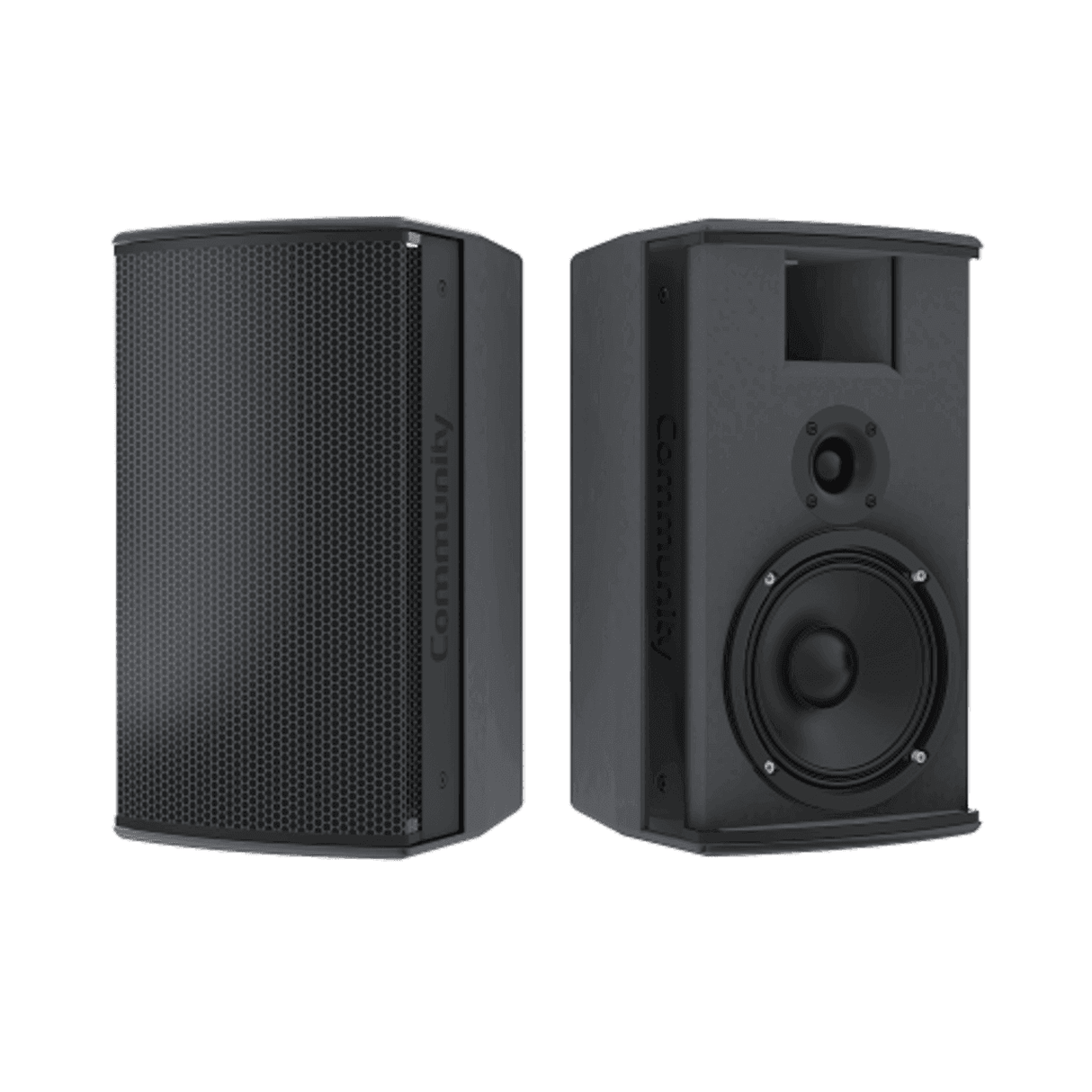

Community IC6-1062WR00 6.5-inch 2-Way Speaker - Weather Resistant - Grey

The Community IC6-1062WR00 loudspeaker system is a two-way, full-range design incorporating one 6.5 in. (165mm) ferrite LF driver with an inherently weather resistant cone and one 1 in. (25mm) exit direct radiating damped fabric dome diaphragm, ferrofluid and heatsink-cooled dual-neodymium motor. The drivers are connected to an internal frequency dividing network with an acoustical crossover frequency of 2500 Hz. The modified trapezoidal loudspeaker enclosure is constructed of a thermally stable, dense structural-grade composite embedded with dual layers of fiberglass cloth and shall be fitted with (9) M6 rigging inserts. The enclosure has a dual layer finish of heavy exterior-grade paint and a UV-resistant top coat. The front of the enclosure is fitted with a wrap-around powder-coated 1.5 mm perforated marine-grade aluminum grille backed with acoustically transparent woven fabric that has been treated with a hydrophobic compound. The secured input panel cover and gland nut provides a sealed connection for the internally connected 12 ft (3.6m) 14 gauge SJOW cable. The system has an operating range of 56 Hz to 18.5 kHz (-10dB SPL). The system also has a nominal impedance of 8 Ohms, an input capability of 35V, produces a sound pressure level of 92 dB (averaged SPL between -10 dB points) on axis at one meter with a power input of 1 Watt, and shall be capable of producing a continuous output of 114 dB SPL (with peak output of 120 dB SPL) on axis at one meter.

I SERIES Compact 600 loudspeakers provide excellent acoustic performance, flexibility and elegant aesthetics for a diverse range of applications in today's performance venues. Designed to support the goals of systems integrators and consultants in need of very compact loudspeakers with exceptional near field fidelity for foreground or background music applications and articulate voice projection with very high output capabilities for fill and distributed applications. I SERIES Compact loudspeakers are engineered to be used alone or integrated into arrays along with I SERIES Point Source (IP) or Subwoofer (IS) models using the comprehensive selection of available BalancePoint Flyware modular array brackets.

Community’s exclusive PolyGlas weather-resistant enclosures are built for a lifetime of performance outdoors. In contrast to fiberglass-covered wood enclosures, PolyGlas cabinets are virtually immune to the destructive effects of moisture and temperature cycling.

Spec Sheet

Features

• Excellent LF extension and output in a very small enclosure
• Exceptional fidelity with elegant I SERIES aesthetics
• Very wide coverage pattern
• Low profile U-Bracket mounting option, compatible with most third party wall and ceiling brackets

Specifications

• Operating Mode: Low Impedance or 70V/100V models
• Operating Environment: Weather-Resistant Outdoor
• Operating Range: 56 Hz to 18.5 kHz
• Nominal Beamwidth (H x V) 100° x 100°
• Transducers:
• LF 1 x 6.5" (165mm) ferrite driver, 1.5" (37mm) voice coil
• HF 1 x 1" (25mm) direct radiating damped fabric dome diaphragm, ferrofluid and heatsink-cooled dual-neodymium motor
• Recommended Amplifiers: 150W - 300W @ 8 Ω, (35V - 49V)
• Physical:
• Input Connection: (1) Screw terminal block (5-position)
• Mounting Points: (9) M6 threaded rigging points
• Environmental Outdoor:
• IP55W per IEC 60529, MIL-STD-810G
• Weight: 12.6 lbs. (5.7 kg) loudspeaker
• Dimensions H x W x D: 14.29" x 8.00" x 8.94" (363 x 203 x 227 mm)
