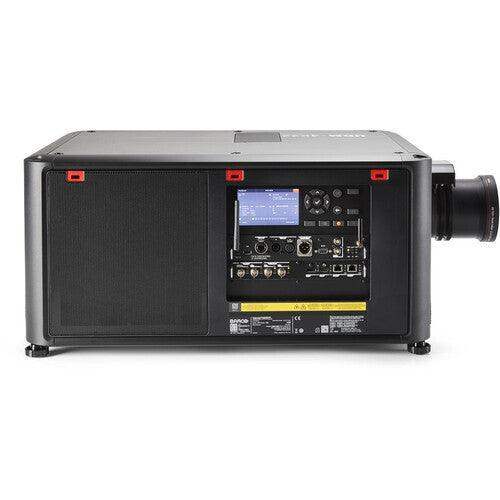

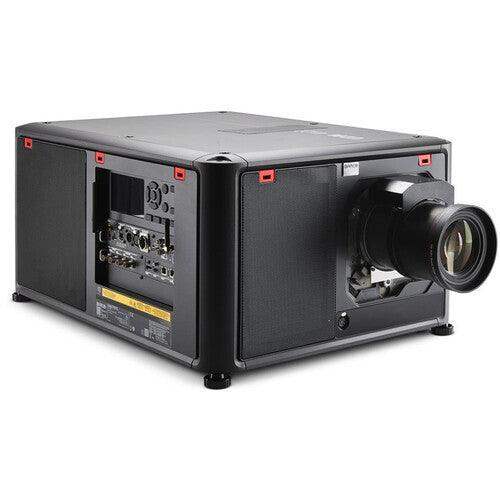

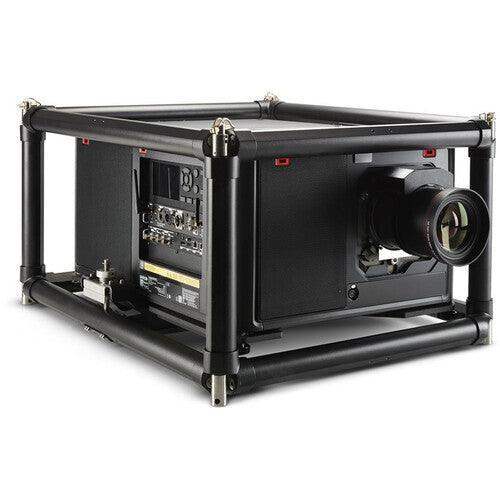

Barco UDM-4K22 22,000-Lumen UHD 4K Laser 3DLP Projector with GSM & Wi-Fi (No Lens) - R9409049-BU

Regular price $70,840.00
Shipping calculated at checkout.
Barco  |  SKU: R9409049-BU

Shipping Now*

Free Ground Shipping over $250.00

Experience up to 22,000 ISO lumens in a compact, rugged, road-ready design with the UDM-4K22 Laser 3DLP Projector from Barco. The UDM-4K22 is one of the lightest 22K projectors in the market at around 105 lbs. While the compact and lightweight design of the UDM-4K22 saves you lots of installation time and reduces shipping and labor costs, it never compromises on the quality or brightness of your projection. The UDM-4K22 features 4K UHD on-screen resolution and 19,000 ANSI-lumens light output to deliver impactful 4K experiences with mind-blowing colors. The UDM projector offers one of the widest color spectrums for 22K laser phosphor projection on the market outperforming the Rec. 709 color space.

Operational Efficiency
Lift your creativity to unprecedented levels with the widest lens shift on the market and an extensive list of other peripherals which will facilitate a smooth installation and integration of the projector in your setup. Barco’s unique FLEX feature allows you to tune and lock the brightness level or resolution for a specific show. The modular design supports fast maintenance and easy serviceability in the field.
Pulse Electronics
With the Barco Pulse proprietary Single Step Processing technology warping, scaling, and 4K UHD processing is done in only one step. The result? Razor-sharp images, market leading lowest latency, and less dark time than comparable solutions.
Connectivity
The UDM is the first projector in the Barco range which is fully connected. The Barco Insights Management Suite Dashboard and remote log file access enables faster and more effective troubleshooting. Manage the brightness settings of your projector fleet and keep track of operating conditions anywhere and anytime through a secured cloud-based platform and integrated 3G connectivity.
Long Lifetime
Thanks to its robustness and the smart material choices, you can trust UDM to withstand the endurances of life on the road. With the laser phosphor light source, lamp-related costs and maintenance as well as image flicker, belong to the past. Barco’s outstanding integrated laser cooling prevents overheating and the Constant Light Output functionality guarantees constant brightness and color across the projector's lifetime.

Features
  • 22,000 ISO / 19,000 ANSI Lumens Bright
  • WQXGA (2560 x 1600) Native Resolution
  • WQUXGA (3840 x 4200) Resolution Support
  • 3-Chip 0.9" DMD DLP Processor
  • HDBaseT, HDMI & DisplayPort Inputs
  • Quad 3G/12G SDI/BarcoLink ULTRA In & Out
  • 360° Orientation Capability
  • Integrated Wi-Fi & GSM Connectivity
  • Barco Insights Management Suite Included
  • Embedded Image Warping & Blending
Specs
Display System
3-Chip 0.9" DMD DLP
Native Chip Resolution
2560 x 1600 (WQXGA)
Maximum Brightness
19,000 Lumens (ANSI)
20,000 Lumens (Center)
22,000 Lumens (ISO)
Supported HDR Input Formats
Yes
Inputs/Outputs
1 x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input
1 x HDMI 2.0 Audio, Video Input
1 x DisplayPort 1.2 Video Input
4 x BNC (3G-SDI) Video Input/Output

Light Source
Laser Phosphor
