Barco ClickShare Hub Core Modular video conferencing room system fo...

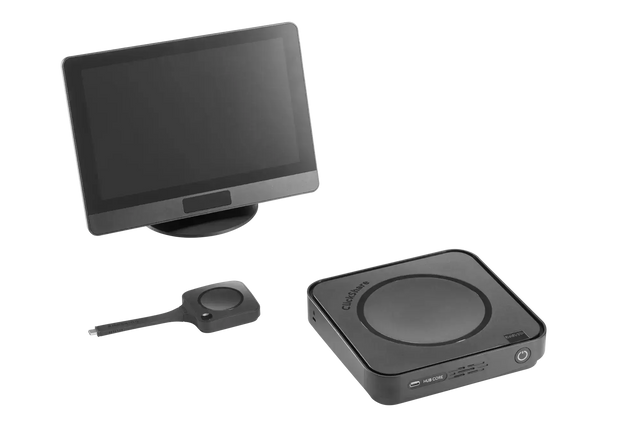

ClickShare Hub Core is a modular wireless video conferencing room system designed to simplify hybrid meetings. Equipped with a next-gen ClickShare Button (featuring Wi-Fi 6E and USB-C DisplayPort™), it enables secure, 4K wireless content sharing, delivering an engaging and visually rich collaboration experience.
For IT managers and integrators, ClickShare Hub Pro offers a customizable solution for all room types, enterprise-grade security and compliance.
Expected to be available end of 2025.
ClickShare Hub Core is a modular wireless video conferencing room system designed to simplify hybrid meetings. Equipped with a next-gen ClickShare Button (featuring Wi-Fi 6E and USB-C DisplayPort™), it enables secure, 4K wireless content sharing, delivering an engaging and visually rich collaboration experience.
For IT managers, ClickShare Hub Core offers native Microsoft Teams Rooms, ensuring easy, and standardized installation with existing systems. Built on the Microsoft Device Ecosystem Platform, it provides enterprise-grade security and compliance.
As a key component of a Microsoft Teams Room, ClickShare Hub works seamlessly with certified devices such as video bars, cameras, and speakers, providing an easy integration experience.
Expected to be available end of 2025.
Features
- Native Microsoft Teams Rooms integration
- Wireless presentation: 4K content sharing with 1 Button
- 100% secure, encrypted, cloud-managed, and built on the Microsoft Android Device Ecosystem platform (MDEP)

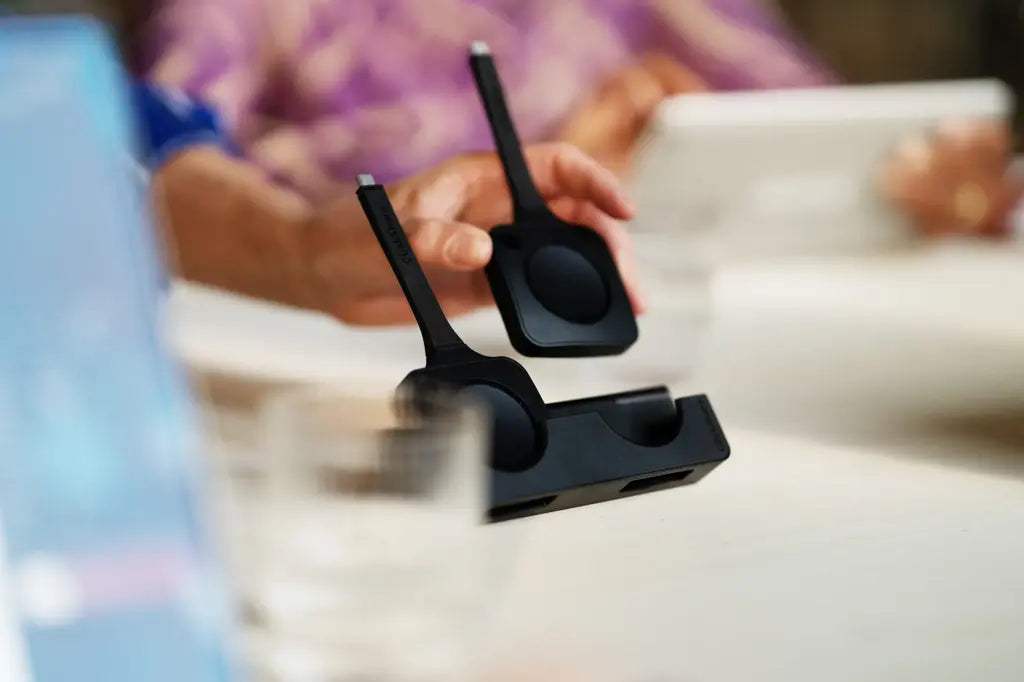

- Next-gen ClickShare Button with Wi-Fi 6e support and USB-C DisplayPort™
- Sustainable product with Barco Eco label A+
Specs
General specifications
- Operating system
- Windows 10 or higher macOS 14 (Sonoma) and 15 (Sequoia)
- System requirements
- For a smooth experience with Microsoft Teams or Zoom Minimum: Intel i3 dual-core processor or AMD Ryzen 7 /8GB RAM / OS: Windows 10 latest build or Mac OS Mojave latest build Recommended: Intel i5 4-core processor or AMD Ryzen 9 / 8GB RAM / OS: Windows 11 latest build or Mac OS latest build
- Video outputs
- HDMI: UW5K WUHD (5120*2160) @30Hz HDMI 2.0 eDP (Touch Console): HD (1280*800) @60Hz DP 1.4
- Video inputs
- 4K UHD (3840*2160) @30Hz HDMI 2.0
- Audio output
- USB, HDMI, BT
- ClickShare Buttons
- 1
- Maximum sources simultaneously on screen
- 1
- Noise Level
- Maximum 25 dBA @ <30°C Maximum 30 dBA @ >30°C
- Wireless transmission protocol
- IEEE 802.11 a/b/g/n/ac/ax/be and IEEE 802.15.1 BT 5.3
- Reach
- Max. 30m (100ft) between ClickShare Button and ClickShare Base Unit Frequency band 2.4GHZ, 5 GHz and 6 GHz (DFS)
- Frequency band
- 2.4GHZ, 5GHz and 6GHz DBS/HBS (DFS channels supported in select number of countries)

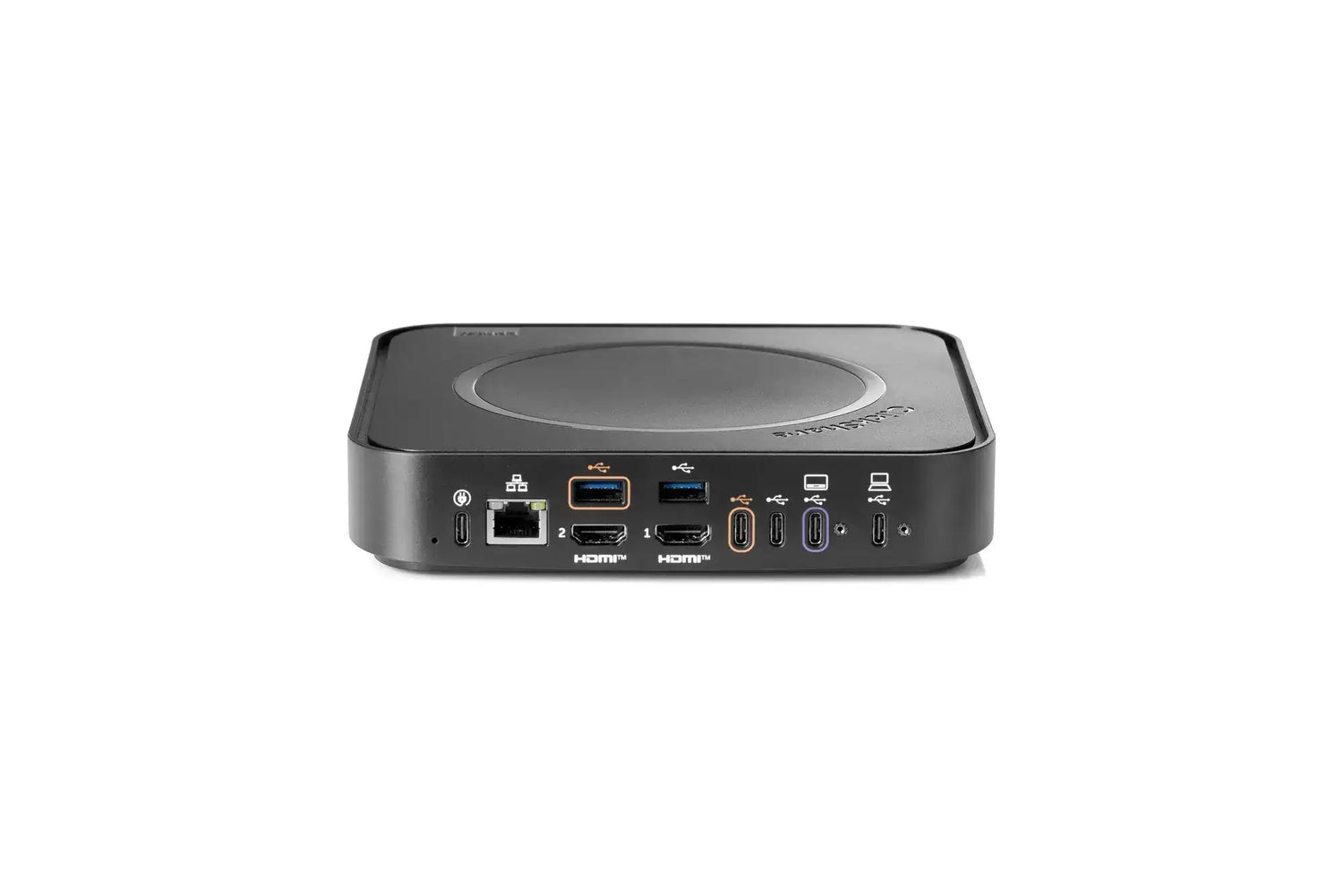

- Connections
- Back: 1x Ethernet LAN 1Gbit 1x USB-C Power delivery 3.1 EPR sink 1x HDMI output 1x USB-A 2.0/3.0 1x USB-C 2.0/3.0 1x USB-C 2.0/3.0 Device + USB-C DisplayPort™ output 1x USB-C 2.0 + USB-C DisplayPort™ output Front: 1x USB-C 2.0/3.0
- Temperature range
- Operating: 0°C + 40°C (+32°F to +104°F) Max 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to + 140°F)
- Humidity
- Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing
- Anti-theft system
- Kensington lock
- Certifications
- FCC/CE
- Network connection
- LAN
- Management and reporting
- Yes
- Warranty
- 3 years standard
- *
- At a later stage
ClickShare Base Unit dimensions
- Dimensions (HxWxD)
- 37 * 180 * 180 (mm)
- Power consumption
- Operational: 140W (max) Standby: <7W (ECO mode), <0.5W (Deep Sleep mode)
- Power supply
- External USB-C charger 100W (PD3.0 SPR), 180W (PD3.1 EPR)
- Weight
- 720gr
