Tascam MH-8 8-Channel Headphone Amplifier
Tascam MH-8 8-Channel Headphone Amplifier is backordered and will ship as soon as it is back in stock.
Shipping Now*
Shipping Now*
Free Ground Shipping over $250.00
Tascam MH-8 8-Channel Headphone Amplifier

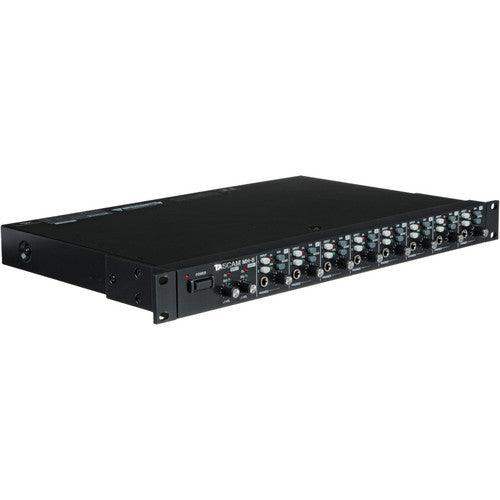

The MH-8 from TASCAM is a professional-quality rackmount headphone amplifier that allows 8 listeners to monitor a variety of sources. Each of the 8 channels has its own direct stereo input. There are also 2 stereo channels that can be shared to any of the outputs. Each 1/4" headphone output can select one input, or mix several together. All of the outputs have an individual level control, as well as input selector switches, a mono switch, and signal and overload LED indicators. A set of 4 TRS foldback outputs allow you to daisy-chain multiple units.
TASCAM's MH-8 is the ultimate headphone amplifier for studio, stage and installation. Each of the eight stereo outputs gets 250mW per side with three switchable sources available. Two stereo inputs can be shared to any of the outputs, and individual stereo direct inputs are available for each of the eight channels. A headphone out can select any one of these inputs, or mix several together. A set of foldback outputs allow you to chain other MH-8s into a system.
Features
- Rackmount design for easy installation in any standard equipment rack
- Direct stereo input on all 8 channels, plus 2 group stereo inputs
- Each channel can select a direct source, group source, or combination of sources
- Standard 1/4" headphone jacks with 250mW + 250mW output

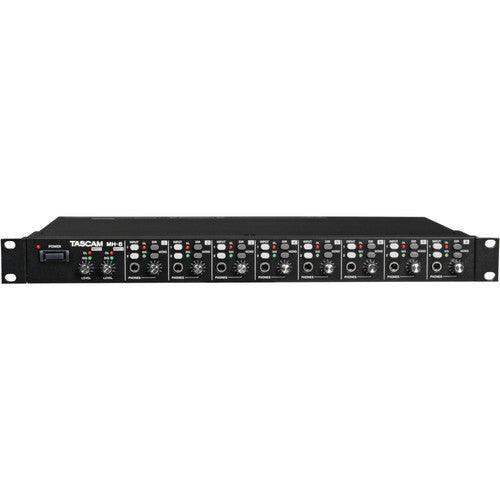

- Each output channel has a level control, input selector switches, a mono switch, and LED indicators for signal and overload
- 4 TRS foldback outputs allow you to daisy-chain multiple units
Specifications
TASCAM MH-8 Specs
| Form Factor | Rackmount |
| Number of Headphone Channels | 8-Channel |
| Headphone Output Power | 250 mW per Side (Max) |
| Display | None |

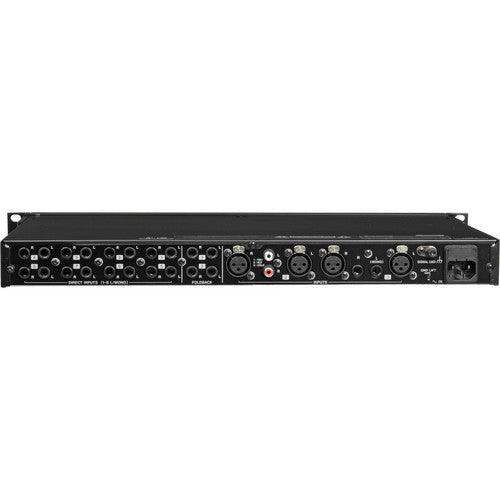

| Analog Audio I/O | 16 x 1/4" TRS Direct Input 4 x XLR 3-Pin Balanced Line Input 2 x 1/4" TRS Balanced Line Input 1 x Stereo RCA Unbalanced Line Input 8 x 1/4" TRS Headphone Output 4 x 1/4" TRS Foldback Output |
| Package Weight | 11 lb |
| Box Dimensions (LxWxH) | 22 x 15.6 x 5.5" |
