Atlona 4K/HDR HDMI 2.0b HDBaseT HDMI 1X4 Exten Distance Distributio...
Send 4K HDR signals to multiple destinations up to 330' away with this 4-Output Extended Distance 4K HDR HDMI to HDBaseT Distribution Amplifier from Atlona. The high dynamic range (HDR) distribution amplifier features one HDMI input and four HDBaseT outputs that can transmit DCI 4K60 video with 4:4:4 chroma sampling, multichannel audio, power, and control signals up to 330' over a single Cat 6/6A/7 cable. It integrates seamlessly in commercial AV distribution applications and boasts support for HDMI pass-through to external monitors, audio de-embedding to a balanced output, EDID management, HDCP 2.2, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing.

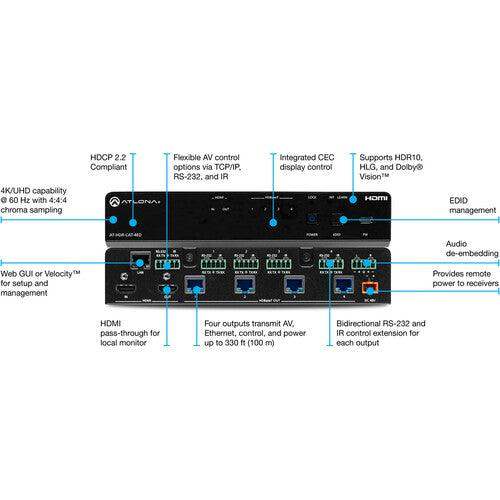

Features
- Extends DCI 4K60 4:4:4 up to 330'
- Supports HDR10, HLG, and Dolby Vision
- Bidirectional RS-232 and IR Control
- Audio Deembedding to Balanced Output
- Pass-Through HDMI Output to Monitor
- Multichannel Audio Pass-Through
- Compliant with HDCP 2.2
Specs
| General Information | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-HDR-CAT-4ED |
| Manufacturer Website Address | http://www.atlona.com |
| Brand Name | Atlona |
| Product Model | AT-HDR-CAT-4ED |
| Product Name | Four-Output Extended Distance 4K HDR HDMI to HDBaseT Distribution Amplifier |
| Product Type | Video Extender Transmitter |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Maximum Operating Distance | 330 ft |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 5 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| Power Description | |
| Frequency | 50 Hz |
| 60 Hz | |
| Physical Characteristics | |
| Transmitter Height | 1.73" |
| Transmitter Width | 8.64" |
| Transmitter Depth | 10" |
| Form Factor | Surface-mountable |
| Rack-mountable | |
| Transmitter Weight (Approximate) | 3.75 lb |
| Miscellaneous | |
| Package Contents | Four-Output Extended Distance 4K HDR HDMI to HDBaseT Distribution Amplifier Surface And Rack Mounting Hardware |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
