Atlona 2x1 HDMI HDBaseT Wall Transmitter with 4K receiver Kit - AT-HDVS-210H-TX-WP-KIT
Atlona 2x1 HDMI HDBaseT Wall Transmitter with 4K receiver Kit - AT-HDVS-210H-TX-WP-KIT is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Atlona 2x1 HDMI HDBaseT Wall Transmitter with 4K receiver Kit - AT-...

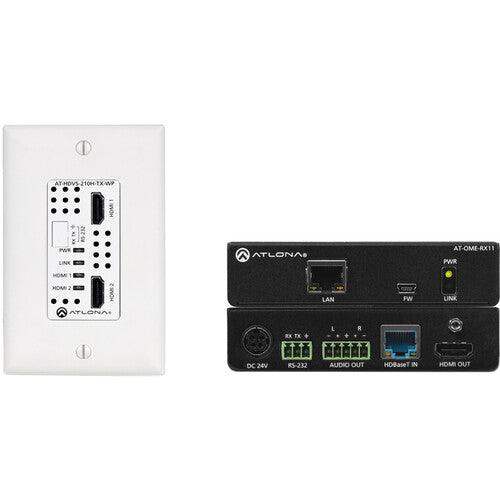

The 4K HDMI over HDBaseT 2x1 Switch Wall Plate Extender Kit from Altona is a complete integration solution with 4K video extension, automatic switching for the two HDMI inputs, and automatic display control. It includes Altona's 4K UHD 2x1 HDBaseT Wall Plate Switcher with Dual HDMI Inputs and a 4K/UHD HDMI over HDBaseT Receiver with Ethernet, Control, and PoE. The Wall Plate Switcher features a compact, low-profile enclosure and the receiver remotely powers the transmitter. This kit extends A/V and control up to 330'.
Features

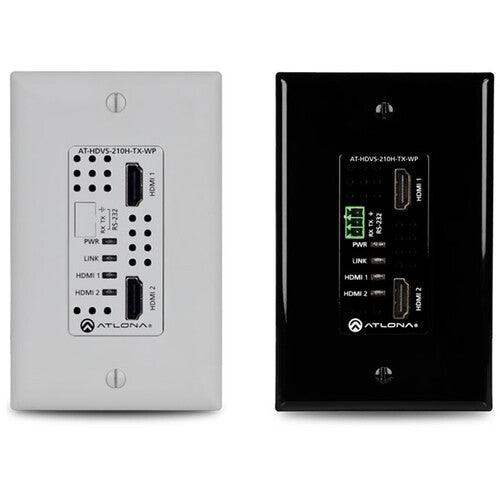

- HDBaseT Wall Plate Switcher
- 4K/UHD HDMI over HDBaseT Receiver
- Compact, Low-Profile Enclosure
- Receiver Supplies Power Remotely
- Extends A/V and Control up to 330'
Specs
| General Information | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-HDVS-210H-TX-WP-KIT |
| Manufacturer Website Address | http://www.atlona.com |
| Brand Name | Atlona |
| Product Name | Video Extender Transmitter/Receiver |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 2 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 330 ft |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| Physical Characteristics | |
| Receiver Height | 0.98" |
| Receiver Width | 4.29" |
| Receiver Depth | 5" |
| Transmitter Weight (Approximate) | 6.35 oz |
| Receiver Weight (Approximate) | 13.76 oz |
| Miscellaneous | |
| Package Contents | Transmitter Unit Receiver Unit |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Country of Origin | Taiwan |
