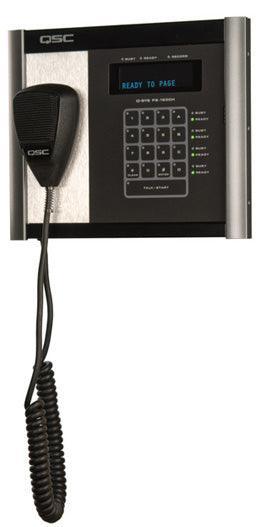

QSC Q-SYS 16-Button Command Code (A-P) Wall Mounted Page Station; Handheld (H) Microphone - PS-1650H (Discontinued)

Availability: Discontinued
QSC SKU: PS-1650H
No reviews

Description

(Discontinued) Q-Sys page stations are network devices for use in transportation, hospitality and other facilities that require live paging to selected zones. Like all Q-Sys system components, functionality of the page stations is defined and configured by system designer using Q-Sys designer. Once a Q-Sys design file has been created, it is then deployed to Q-Sys core processor over the Q-LAN network. Page station works in conjunction with the public address router, suite of Q-Sys software to provide extensive and sophisticated paging functionality. Q-Sys page stations provides two network interfaces (two gigabit Ethernet ports) for connection to Q-Sys system.
This allows page stations to be connected to two switch ports or to be deployed on two separate networks to support variety of redundant operation modes for mission critical applications. In addition to audio and data deliveries via Q-LAN, the page stations are designed to receive power from the network via PoE (Power over Ethernet) or from an optional +24Vdc power supply. Page stations provide a front panel user interface that includes a 16, 8 or 4-button capacitive touch keypad depending on the model selected. The keypad offers visible feedback and audible cues, yet there are no buttons or membranes to wear out. Paging status, operational detail and alerts are also reported via illuminated status indicators and the stations 240 x 64 monochrome graphics LCD.
Voice input is provided through handheld push-to-talk dynamic paging microphone. A unique magnetic docking system and cable strain relief allow flexibility in microphone placement when not in use yet help deter theft or removal of microphone. Rear panel of page station offers variety of auxiliary audio I/O interfaces and GPIO for expanding the capability of the page station. The auxiliary audio inputs can accommodate accessories such as a secondary microphone or other audio source. This feature-set permits single page station (with an optional second microphone) to serve, for example both the kiosk and the jet way entrance of an airport boarding area.
The page stations includes an auxiliary output that can drive an amplifier/powered loudspeaker even if page station looses connection to the Q-Sys core. GPIO interface can be configured to use external events to affect paging operation or to affect external control systems. Page station is designed with flexible mounting system.
  • Capacitive touch, programmable keypad and 240 x 64 graphics LCD for flexible customization
  • Fully compatible with all Q-Sys systems
  • Simply connect to Q-Sys system (with version 2.0 software or later) and all paging functions are available without need for additional hardware boxes
  • Second microphone input and GPIO allow one page station to serve two locations
  • Dual Ethernet connections support network redundancy
  • Use Power over Ethernet (PoE) or local power supply
  • Rugged, handheld PTT (Push To Talk) microphone with convenient magnetic mount included
  • Q-Sys technical support is available 24/7 worldwide

Spec Sheet

        Page Station Models

        Model Microphone Type* Assignable Buttons
        PS-1650H PTT Handheld 16
        PS-1600H PTT Handheld 4
        PS-1650G Gooseneck 16
        PS-1600G Gooseneck 4
        SPECIFICATIONS Page Station
        Audio Channel Capacity 2 line inputs, 1 line output
        Front Panel Controls Paging Keypad: Capacitive touch keypad
        Microphone: PTT momentary switch
        Front Panel Indicators Talk, Ready, Busy: Bi-color LEDs (red/green)
        Keypad button activity: Green LEDs
        LCD: 240 x 64 monochrome graphics display
        Front Panel Connectors RJ45 microphone connector
        Rear Panel Connectors Q-SYS Network LAN A: RJ45 1000 Mbps only
        Q-SYS Network LAN B: RJ45 1000 Mbps only
        DC power +24V inlet: 2-pin Euro receptacle
        Line input: 3-pin Euro receptacle
        Line output: 3-pin Euro receptacle
        GPIO: 6-pin Euro receptacle
        Line Voltage Requirements IEEE 802.3af power over Ethernet (POE) or +24V DC
        Dimensions (HWD) inches 10.37 x 8.3 x 1.5
        Dimensions (HWD) mm 264 x 211 x 38
        Accessories Included Hardware user manual, connector ship kit,
        warranty card and PTT handheld microphone
        Line Input
        Dynamic Range
           Unweighted
           A-weighted

        > 115 dB
        > 118 dB
        Distortion
        (20 Hz - 20 kHz, all sensitivities)
           +4 dBu (max)
           2 dB below clip


        < 0.009% THD+N
        < 0.009% THD+N
        Crosstalk (20 Hz - 20 kHz)
           Inter-channel (max)
           Inter-channel (typical)
           Intra-channel (max)
           Intra-channel (typical)

        > 75 dB
        > 90 dB
        > 85 dB
        > 100 dB
        Frequency Response
           20 Hz - 20 kHz (max)
           20 Hz - 20 kHz (typical)

        ± 0.5 dB
        ± 0.2 dB
        Input Impedance
           Balanced (nominal)
           Unbalanced (nominal)

        10k ohms
        10k ohms
        Common Mode Rejection
           20 Hz - 20 kHz (max)
           20 Hz - 20 kHz (typical)

        > 54 dB
        > 60 dB
        Input Sensitivities Vrms: 1.5, 3, 9, 18
        dBu: 5.7, 11.8, 21.3, 27.3
        dBv: 3.5, 9.5, 19.1, 25.1
        Line Output
        Dynamic Range
           Unweighted
           A-weighted

        > 112 dB
        > 115 dB
        Crosstalk (20 Hz - 20 kHz)
           Inter-channel (max)
           Inter-channel (typical)
           Intra-channel (max)
           Intra-channel (typical)

        > 75 dB
        > 90 dB
        > 85 dB
        > 100 dB
        Mute Infinite attenuation
